Light duty rack
Light duty rack
Light shelves are very economical, practical and convenient warehouse shelves. Because of their light load capacity, they are often called light shelves. Shelves are composed of three components: column pieces, beams, and laminates. The lightweight shelves adopt a screw-free modular design as a whole, making installation and disassembly easy and fast. Suitable for storing some light and small items, it is a type of laminate shelf.
Light shelves are very economical, practical and convenient warehouse shelves. Because of their light load capacity, they are often called light shelves. Shelves are composed of three components: column pieces, beams, and laminates. The lightweight shelves adopt a screw-free modular design as a whole, making installation and disassembly easy and fast. Suitable for storing some light and small items, it is a type of laminate shelf.
Specification
| Standard Length | 2000 | 2000 |
| Standard Width | 500 | 600 |
Loading Capacity | 200KG/layer | 300KG/layer |
| Panel | galvanized sheet | spray board |
| Layer | 4 | |
| Remark | All size can be customized | |
Details
Diamond hole（Standard column hole pattern, front and back available）
Quick disassembly and assembly （Screwless buckle assembly, customers can disassemble and assemble by themselves,convenient and simple）
Reinforced laminate（Fully automatic cleaning and spraying production line，Spray paint coating, perfect and does not fade，Reinforcement ribs are only layer-by-layer, with strong bearing capacity）

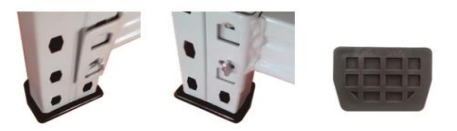

Plastic feet（Beautiful, generous, does not harm the ground）

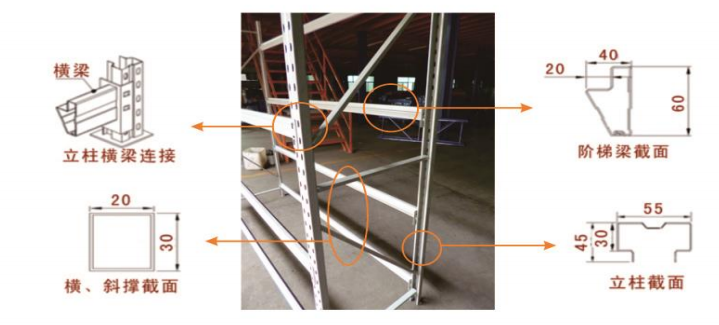

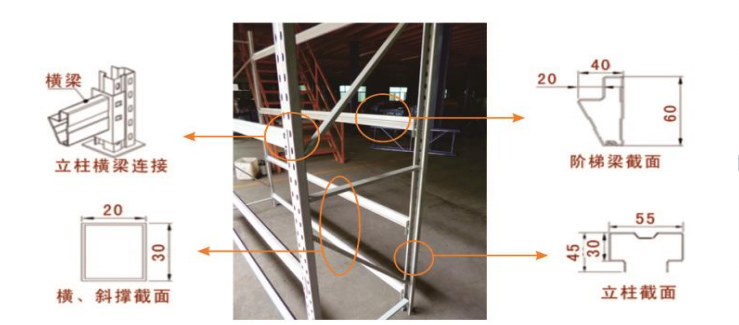

Structure

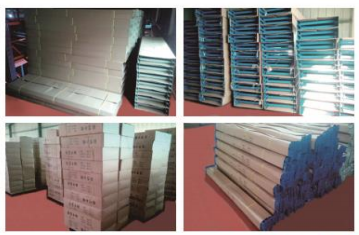

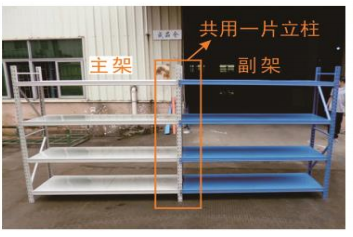

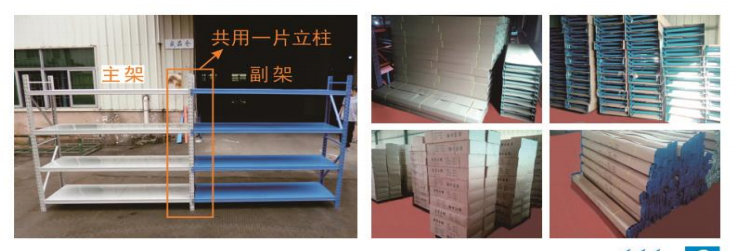

Finished product
