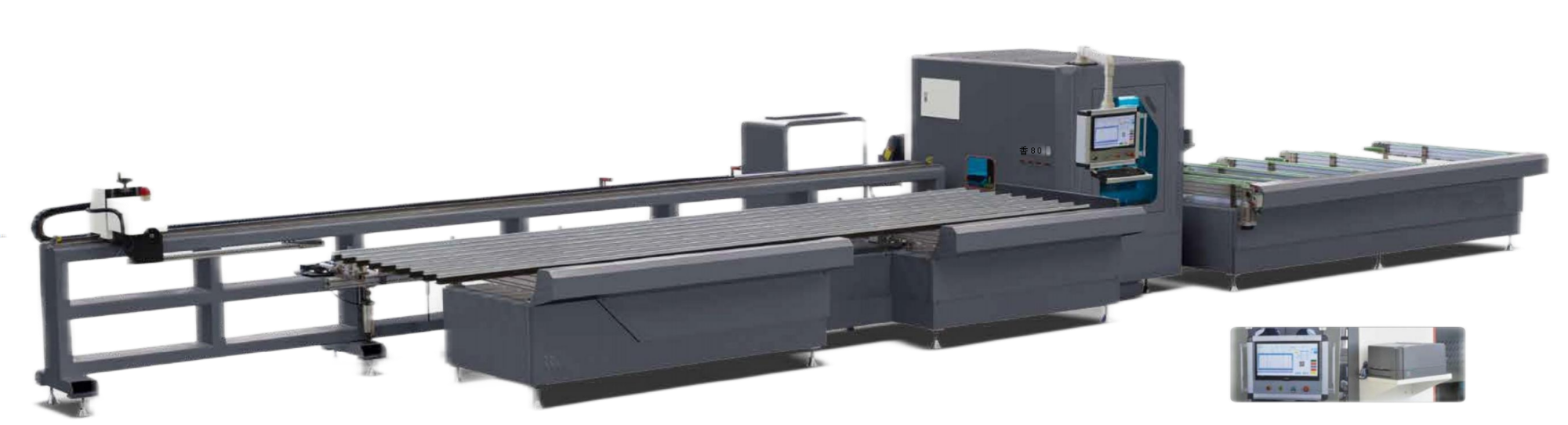

Intellectual Cutting Center for Aluminum Profile
Length can be customized
Uses for cutting 45°and 90°of aluminum PVC profile of window,door,curtain wall,solar and other industrial aluminum with functions of automatic cycle feeding,cuting and automatic oulput of finished products.
Intellectual Cutting Center for Aluminum Profile
Uses for cutting 45°and 90°of aluminum PVC profile of window,door,curtain wall,solar and other industrial aluminum with functions of automatic cycle feeding,cuting and automatic oulput of finished products.
Specification
| Supply power | 380V 50Hz | Motor speed | 2800r/min |
| Total power of equipment | 11kw | Working pressure | 0.6~0.8Mpa |
| Air supply | 120L/min | Cutting length | 300~6500mm |
| Cutting width x height | 150x150mm | Cutting angle | 45°， -45°， 90° |
| Saw blade feed speed | 0500×4.4×φ30 Z=120 | Overal dimension | 13500×4500×2300mm |
| Weight | 4000kg |
Advantage
1. Cutting length accuracy:±0.1mm
2. Flatness of cutting profile:s0.10mm
3. Cutting angle error:±5'
4. Roughness of cutting profile:Ra12.5μm
5. Various door and window profles can be cut without adding profile profling.
6. Automatic feeding worktable can continuously and automatically clamp profiles for cutting processing,and imported high-precision gear rack is used for the motion of manipulator to ensure the feeding accuracy.
7. The moving part adopts high-precision linear guide rail pair, which runs stably and ensures the machining accuracy.
8. Imported high-quality control system ensures stable and reliable operation of equipment.
9. Imported motor is directly connected to saw blade,which has stable cutting and high machining precision.
10. Equipped with multi-station capacity follow-up tool magazine, fully enclosed shell design and multiple safety protection structures to ensure the safety of operators.

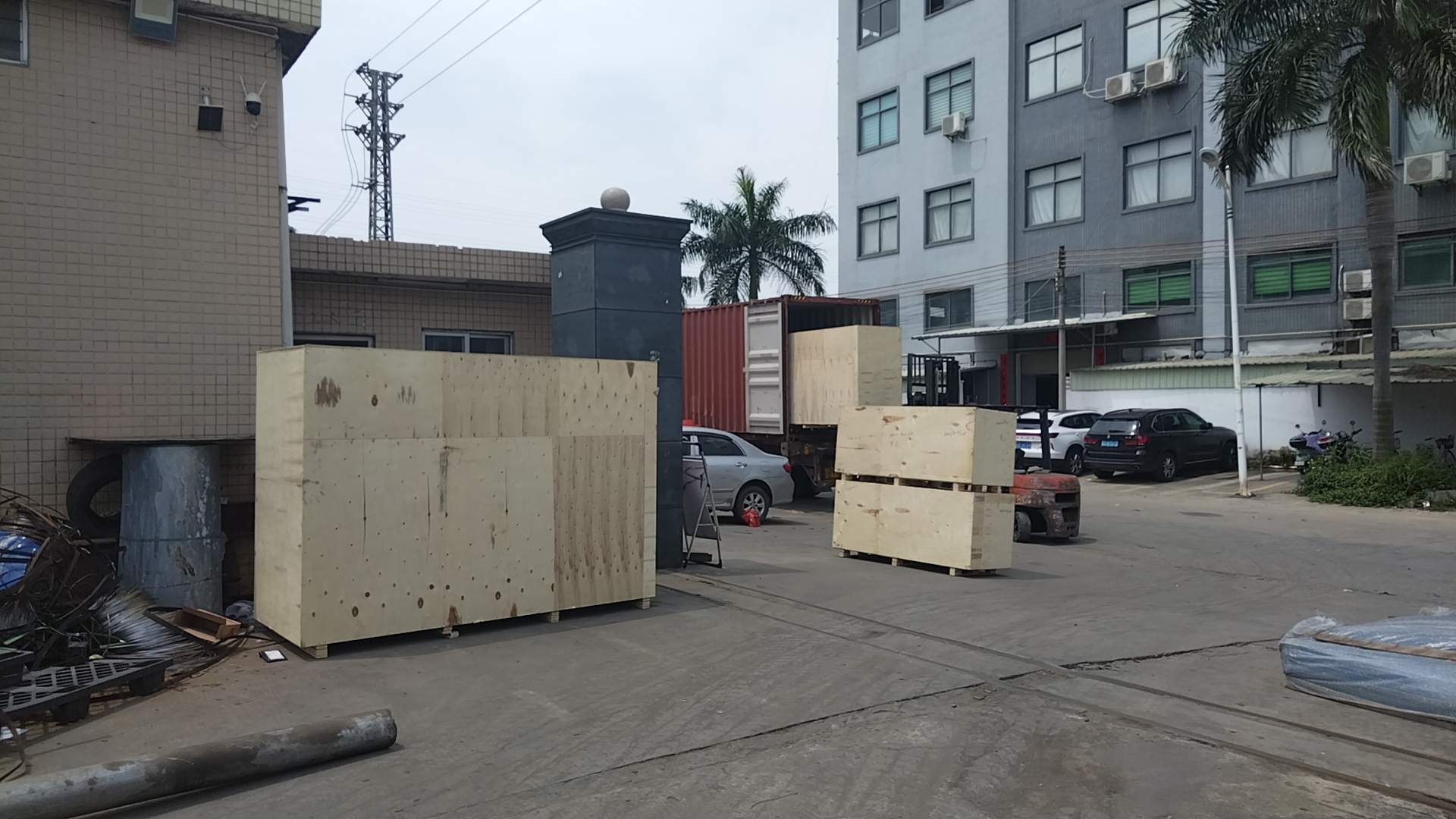

Delivery
